MotorSizer

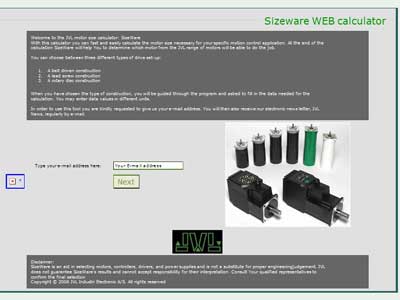

| MotorSizer is a web based software freely available on the Internet 24 hours a day. MotorSizer makes it very easy to determine the required motor and gear size for a specific task in applications such as machine design, education and research. MotorSizer enables you to key-in all commonly required parameter values that influence the motor torque or power required in order to achieve the desired motion. MotorSizer can be used for calculation of the correct motor and gear size for AC-Servo, DC-Servo, and Stepper motors. MotorSizer is very easy to use. A single screen picture is used for displaying all parameters. Once the known values have been keyed in, simply select CALCULATE to display the results of the configuration. Go to motorsizer |
|
||||||||
- Easy to use
- Single screen for all calculations
- Can be used for dimensioning Step, AC-, and DC Servo Motors
- Following parameters can be keyed-in: Velocity - Acceleration - Time - Load Motor Inertia - Gear Inertia Vertical/Horizontal movement - Safety factor
- Can calculate with or without gearing on various drives: Spindle - Drive belt - Disk
- Also ideal for educational purposes
- Single screen for all calculations
- Can be used for dimensioning Step, AC-, and DC Servo Motors
- Following parameters can be keyed-in: Velocity - Acceleration - Time - Load Motor Inertia - Gear Inertia Vertical/Horizontal movement - Safety factor
- Can calculate with or without gearing on various drives: Spindle - Drive belt - Disk
- Also ideal for educational purposes
